The way to reduce GHG and ammonia emissions on pig farms – Articles

The gasoline switch velocities from the liquid segment to the ambience is proportional to the variation between the focus within the liquid segment and that which it will have if it had been in equilibrium with the gasoline segment. The equilibrium focus is that at which there’s no switch, i.e., no emissions. A gasoline that’s not very soluble (low equilibrium focus, as with regards to CH₄) will have a tendency to flee abruptly into the gasoline segment, while another way (as with regards to NH₃) it might probably handle top concentrations within the liquid segment with out emissions.

Now not all ammoniacal nitrogen is within the type of NH₃, slightly it’s most commonly within the type of non-volatilizable NH₄⁺. As pH or temperature decreases, extra nitrogen might be within the type of NH₄⁺ and extra ammoniacal nitrogen (sum of NH₃ and NH₄⁺) will stay within the liquid medium. If the focus of NH₃ within the gasoline segment above the slurry will increase past the standard values within the environment, so will the equilibrium focus within the liquid. Thus, at pH 7, a temperature of 20°C, and a focus of fifty ppm NH₃ within the gasoline segment above the slurry, the equilibrium focus of ammoniacal nitrogen within the liquid is 5,260 mg N/L, whilst at pH 8 this focus is 540 mg N/L. To stop emissions, and to handle upper concentrations in liquid media, a pH of seven is healthier than pH 8, and if the pH is less than 7 it’s higher nonetheless. The decrease the NH₃ focus within the air layer above the slurry floor (reasonable focus within the earth’s environment of one – 5 ppb), the decrease the equilibrium focus and the speedier the emission might be. This will be the case within the tournament of wind or every other gasoline dispersion phenomena. Overlaying the lagoon, even quite, to offer protection to it from dispersion or to lower the outside space of liquid/gasoline alternate, will have an impact in lowering NH₃ emissions. Now not so with CH₄, which can get away to the ambience beneath any cases, except the lagoon quilt is totally hermetic.

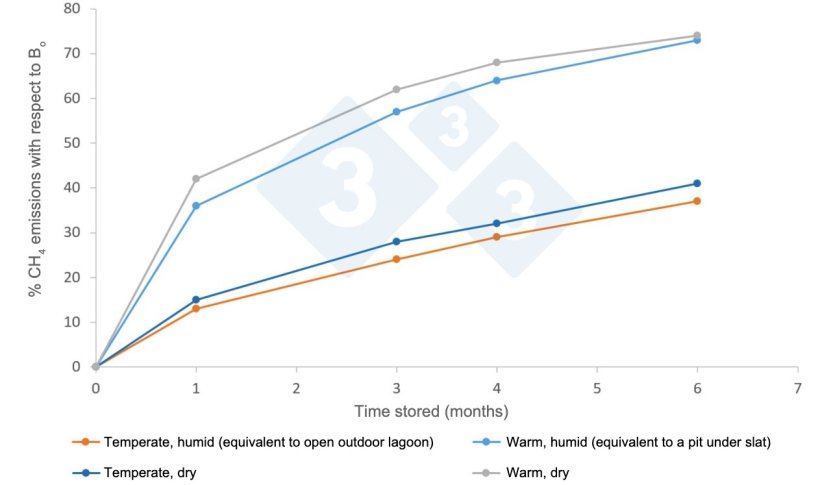

CH₄ emissions rely at the time all the way through which anaerobic microorganisms decompose natural topic, whose task will increase with temperature. The determine displays the CH₄ emission elements in step with the 2019 IPCC (Intergovernmental Panel on Local weather Trade) handbook for temperate climates and heat climates, both humid or arid. Temperate climates correspond to reasonable annual temperatures between 15°C and 25°C, and heat climates to better temperatures. The IPCC handbook signifies that with the intention to estimate emissions within the pits beneath the slat, the environmental stipulations within the animal enclosure- a heat, humid environment- will have to be regarded as, no longer the out of doors stipulations. The latter has been experimentally confirmed. Merely eliminating the slurry from the barns once imaginable to an outside lagoon can scale back emissions, e.g. from 57% to 24% in case of storing for three months (see determine).

To stop NH₃ emissions, other tactics may also be carried out so as of precedence:

1. Give a boost to diets and protein and amino acid digestibility. The upper the feed potency, the decrease the focus of nitrogen within the slurry and the slower the switch velocities.
2. Take away slurry from barn pits as continuously as imaginable, each day slightly than each week, and each 6 hours slightly than each 24 hours. Even though the IPCC handbook estimates reasonable nitrogen emission values of 25% (vary of 15% – 30%) of excreted nitrogen for pits beneath slats, and 48% (15% – 60%) for exterior lagoons and not using a herbal crust, the lagoon lets in for protecting and fighting emissions (decreased to a few% – 12% in step with the IPCC handbook), which isn’t achievable in pits. It additionally prevents the animals from breathing in ammonia, which has well being and manufacturing advantages.
3. Duvet out of doors lagoons with a tarp or different subject material that reduces the touch space between the outside of the saved slurry and the ambience. As an example, forged floating items that are compatible in combination to totally tessellate the outside of the slurry. Overlaying the lagoon with an impermeable membrane will even save you the emission of CH₄, a gasoline that can gather beneath the membrane and should be burned periodically in a flare or boiler, or for power use, to forestall the membrane from rupturing because of extra drive. This extra drive won’t ever be because of NH₃, since as soon as the equilibrium concentrations between liquid and gasoline stages are reached, its emission will forestall.
4. Cut back the pH of the slurry to underneath 7 by means of including acid and the usage of apparatus specifically designed for this function. There could also be apparatus to acidify within the slurry shipping and agricultural utility tank to forestall the lack of NH₃ all the way through packages.

To stop CH₄ emissions, the next tactics may also be carried out:

1. Give a boost to the digestibility of diets and save you feed loss to slurry. Even though there may be nonetheless no evidence-based data, a better potency in animal feeding will have to suggest a decrease power doable of unstable solids (VS) within the slurry and, subsequently, a decrease emission doable price B_o.
2. Take away slurry from the barn pits once imaginable. As proven within the determine, this custom has a substantial impact on lowering CH₄ emissions.
3. Undertake a forged/liquid separation once imaginable after the slurry is got rid of from the barns. The stacked forged fraction has emissions round 4% – 5% B_o in step with IPCC, given the unstable solids it accommodates, and the liquid fraction will emit in step with the corresponding price within the Determine, however for a decrease focus of VS and, subsequently, decrease emissions.
4. Duvet the outer lagoon with an impermeable membrane to forestall emission into the ambience. One of these lagoon should be designed in order that it by no means empties utterly, in order that no air enters, and it should come with protection mechanisms to keep away from extra drive in addition to a flare to periodically burn off the accrued gasoline. A greater choice is to make use of gasoline as boiler gasoline.
5. Plan a biogas plant, whether or not person or collective, using the gasoline as an power supply. The slurry will have to input the plant once imaginable to benefit from its complete power doable. The digestate lagoon should be coated to forestall NH₃ emissions, for the reason that focus of ammoniacal nitrogen is upper than that of the unique slurry, because of the decomposition of proteins.
