Easy methods to create other designated spaces for completing pigs? – Articles


Regularly, the principle grievance the present fashion for completing pig housing receives is that uniform slatted floor compromises animal welfare. One option to beef up this facet is to supply animals various choices. It is very important permit animals to prepare their dwelling area into 3 spaces: a resting space, a useful resource space (feed, water, and enrichment), and a defecation space. In an effort to restrict pageant and fights, just right practices will have to be adopted in those 3 spaces.


Throughout the framework of the Bâtiporc C4E mission, led by way of Ifip (Institut du porc, France), a number of visits to farms and discussions with farmers who’ve carried out those rules were performed. The mission objectives to design a brand new era of pig barns by way of proposing a construction with a couple of standards making an allowance for:


  • Animal welfare
  • Office ergonomics
  • Recognize for the surroundings
  • Societal expectancies



Reviewing stocking density is frequently vital for diversifying ground varieties and facilitating designated spaces. The other spaces are rather compact in a completing barn with slatted flooring and zero.65 m² in keeping with pig.


  • Placement of drinkers and enrichment subject matter: In a liquid feeding machine, farmers normally position drinkers and enrichment fabrics in the similar space. This permits the job space to be on one aspect of the pen and frees up the rest area for the resting and defecation spaces.


  • Scattering manipulable fabrics all the way through the pen will increase animal job, which is unfavourable to the relief of the ones animals that wish to leisure and can result in behavioral issues. For this sort of structure to paintings, animal density should be lowered (1 m² in keeping with pig, as an example) to disencumber area. More often than not, this permits the animals’ attainable to be higher expressed and facilitates their get admission to to assets.


  • A mendacity space is usually a smart approach to delimit the resting space. Then again, lowering the stocking density can be instructed to maximise the possibilities of retaining it blank. Pay shut consideration to the design prerequisites (measurement, place, pen structure, and so forth.). Within the context of extremely inflated barn building prices, and with the objective of 0 artificialization of agricultural lands changing into a truth, lowering stocking charges would possibly appear difficult. This implies both lowering sow numbers to make do with current barns or construction new ones.


  • Some other resolution may well be to build up the scale of the completing teams. This idea was once already carried out when grouping gestating sows in 2013. Farmers who selected a housing means that teams greater than 40 sows may legally scale back the skin space by way of 10%. The pig’s gregarious habits and its talent to prepare its dwelling areas make it conceivable to disencumber area when the scale of a gaggle of animals exceeds a definite threshold. The similar phenomenon is seen in completing gadgets controlled in huge teams (pens of 100 pigs or extra). Then again, this selection is some distance from trivial and reasons different constraints that should be addressed (heterogeneity of the flock, feeding means, sanitary control, and so forth.).

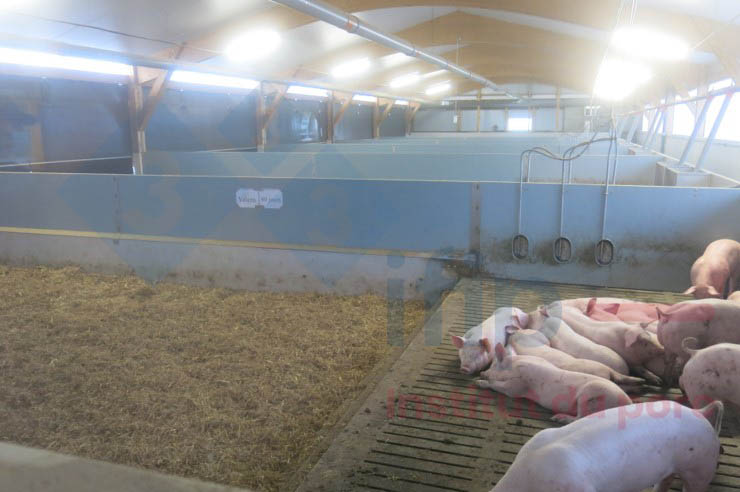

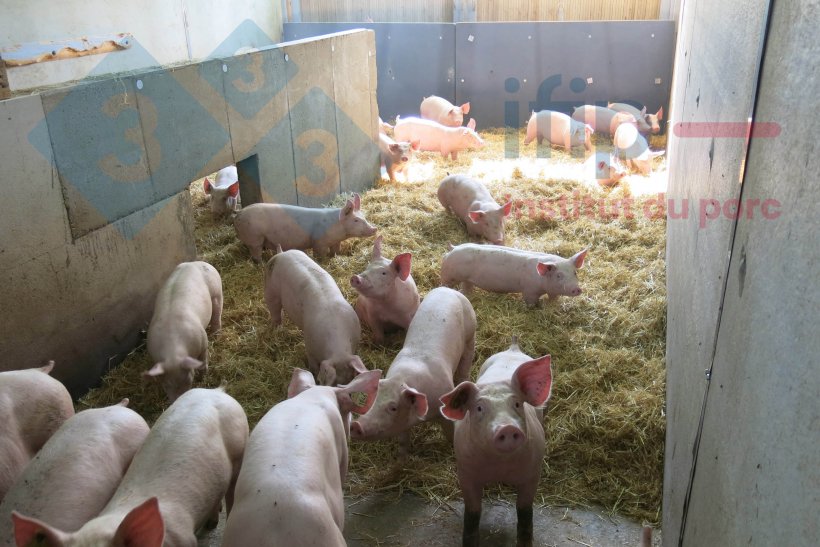

  • Combining an space with straw (about 1 m²/pig) with a slatted space (between 0.2 and zero.4 m²/pig) can be offering a couple of chances for pen structure. Straw serves as each the resting space and the enrichment space.



  • The feeding machine and drinkers are typically situated at the slatted ground, a space that also is known because the defecation space. Due to this fact, a air flow machine that creates discomfort on this space should be designed.


  • A scaper is absolute best to take away manure from beneath the slatted ground as it might be tricky to take away the straw particles by way of gravity. The principle chance of this sort of design is the spaces being inverted in the summertime for the reason that fermentation of the straw bedding generates warmth, and pigs will have a tendency to sleep at the slatted ground space to stay cool. This will likely almost definitely intrude with their pen buddies’ consuming and ingesting.


  • Word that with totally slatted flooring and a typical stocking density, it’s frequently vital to crew the feeders, drinkers, and enrichment subject matter in the similar space to restrict job within the pen. If the stocking density within the slatted machine is lowered (e.g. 1 m²/pig), it’s conceivable to disperse the assets to facilitate animal get admission to with out the chance of anxious the resting space.

  • If the resting space, slatted ground, and gruel/liquid feeding are mixed, care should be taken to stay all of the space dry.


Usually, the distribution of the other spaces in a pen continues to be very theoretical, and more than a few occasions can trade how animals occupy the distance. However, now we have seen that the association of the other spaces within the pen is extra advanced in a liquid feeding machine with lengthy trough feeders than with dry feeders or RFID feeding methods, for the reason that feeding space is greater and blocks the pen geometry, lowering the structure chances.


Throughout the framework of the Bâtiporc C4E mission in collaboration with the Chambers of Agriculture of Brittany and Will pay de l. a. Loire, technical sheets are introduced to assist farmers and their advisors within the design of recent pig amenities: https://batiporc.ifip.asso.fr/
